Eko Persiane: Advanced Aluminium Shutter System



eko persiane.jpg

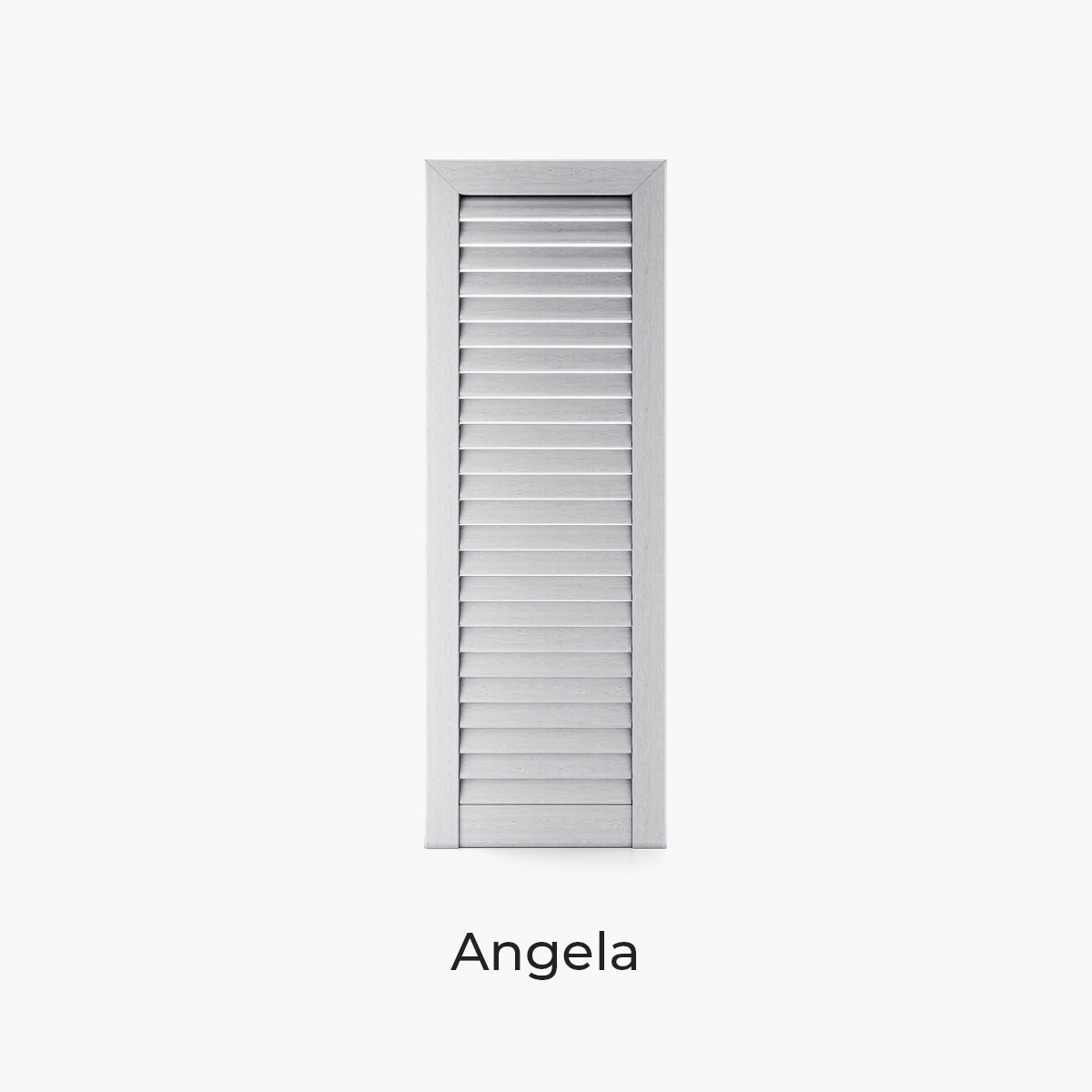

The ANGELA shutter is characterised by 50 mm rounded fixed slats, set at a 45-degree angle, separated by special nylon spacers available in various colours. The slat arrangement provides room lighting and free air flow, while guaranteeing privacy.
●sliding option available (on special request),
● leaves can be mounted directly to the wall,
● possibility of mounting on frames with 45 or 62 mm renovation fins,

The special water droplet shape of the adjustable slats of this shutter ensures its ability to effectively protect against sun and atmospheric phenomena, and even airborne dust. Its adjustment is smooth and harmonious.
●handle closing,
●mounting with a frame with a 25 mm renovation fin,
●6 hinge colours matched to the shutter colours,

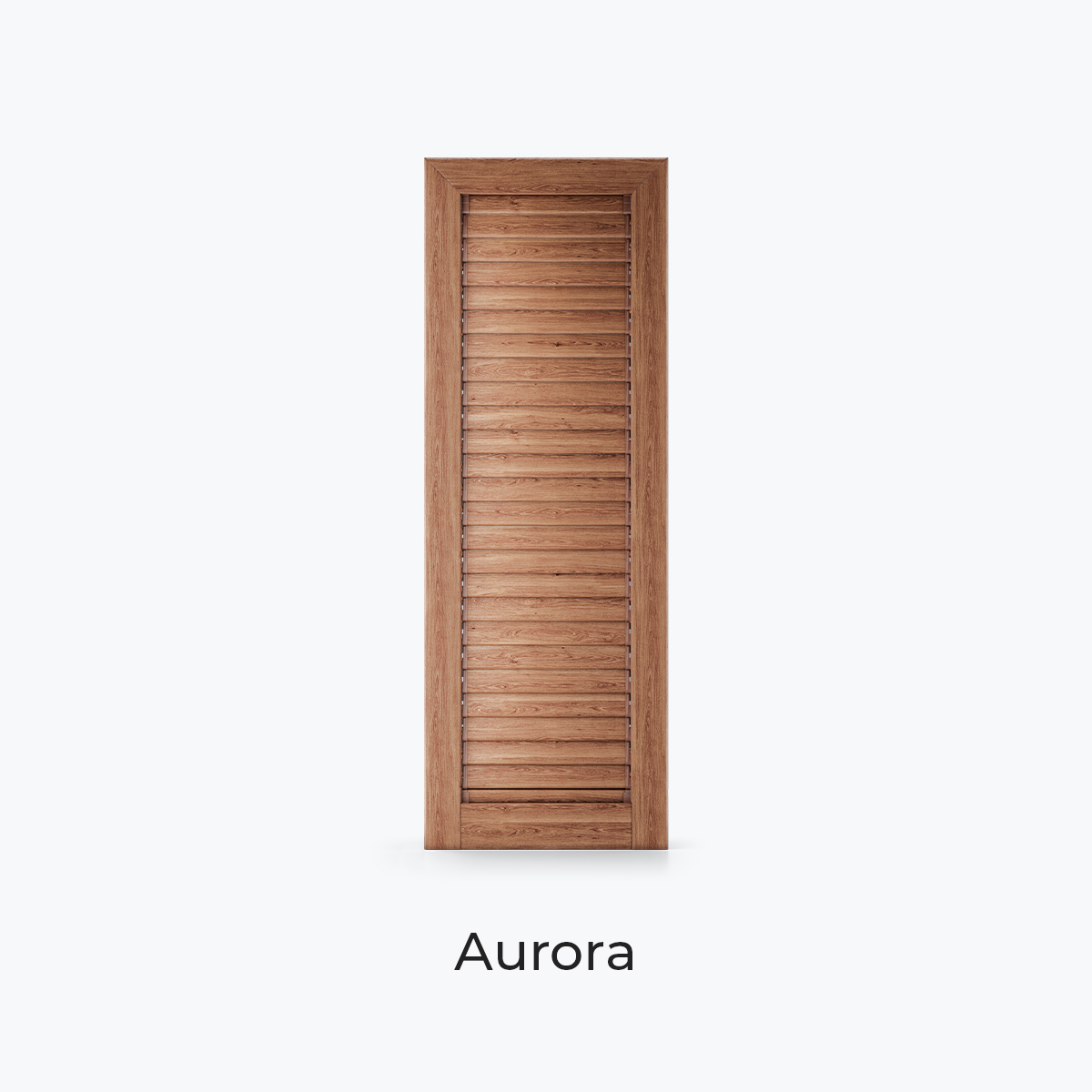

The AURORA shutter is distinguished by adjustable drop-shaped slats, which, thanks to a special connection system, allow for tight separation from the outside world, blocking even dust. Movable slats are also easier to clean, and their adjustment is quiet and smooth.
●sliding option available (on special request),
●leaves can be mounted directly to the wall,
●possibility of mounting on frames with 45 or 62 mm renovation fins,

Eko Persiane is a professional shutter system manufactured from extruded aluminium of varied thickness. Combining durability with high aesthetic standards, this system is designed to provide security and weather protection while allowing for extensive personalisation to match your building’s architecture.

Technical Specifications

  • Material: Extruded aluminium (varied thickness).
  • Slats: Fixed or movable, depending on the model.
  • Mounting Options: On a frame with a renovation fin or directly to the wall, depending on the model.
  • Design Details: Concealed mounting screws and some hinges for a clean finish.

Dimensions:

  • Window shutter height: Max 1800 mm.
  • Balcony shutter height: 1800–2700 mm (larger sizes require individual consultation).
  • Crossbar width: 80 mm or 100 mm (depending on the model).
  • Handle/Espagnolette height (door shutter): 1100 mm.
  • Configuration: 1 to 4 leaves.
  • Key Features & Performance
  • Wind Resistance: Guaranteed class 6 wind load resistance, ensuring maximum system safety.
  • Durability: Equipped with self-lubricating, powder-coated aluminium hinges.
  • Security: Can be equipped with 1- or 3-point locking systems.
  • Aesthetics & Finish:
  • All gaskets and nylon spacers are colour-matched to the shutter (5 shades available).
  • Standard palette: 23 RAL shades and 23 wood-like decors (non-standard colours available via individual pricing).
  • Warranty: 10-year warranty on shutter colours.

Why Choose Eko Persiane?

The Eko Persiane system offers a perfect balance of safety and design. With class 6 wind resistance and robust aluminium construction, these shutters provide reliable protection against the elements. The ability to choose between fixed and movable slats, combined with a wide range of RAL colours and wood-like decors, makes this an ideal solution for creating a unique look for both windows and balcony doors.

Enhance your home with the high-performance Eko Persiane system. Contact our team today for technical guidance or to request a customised quote.

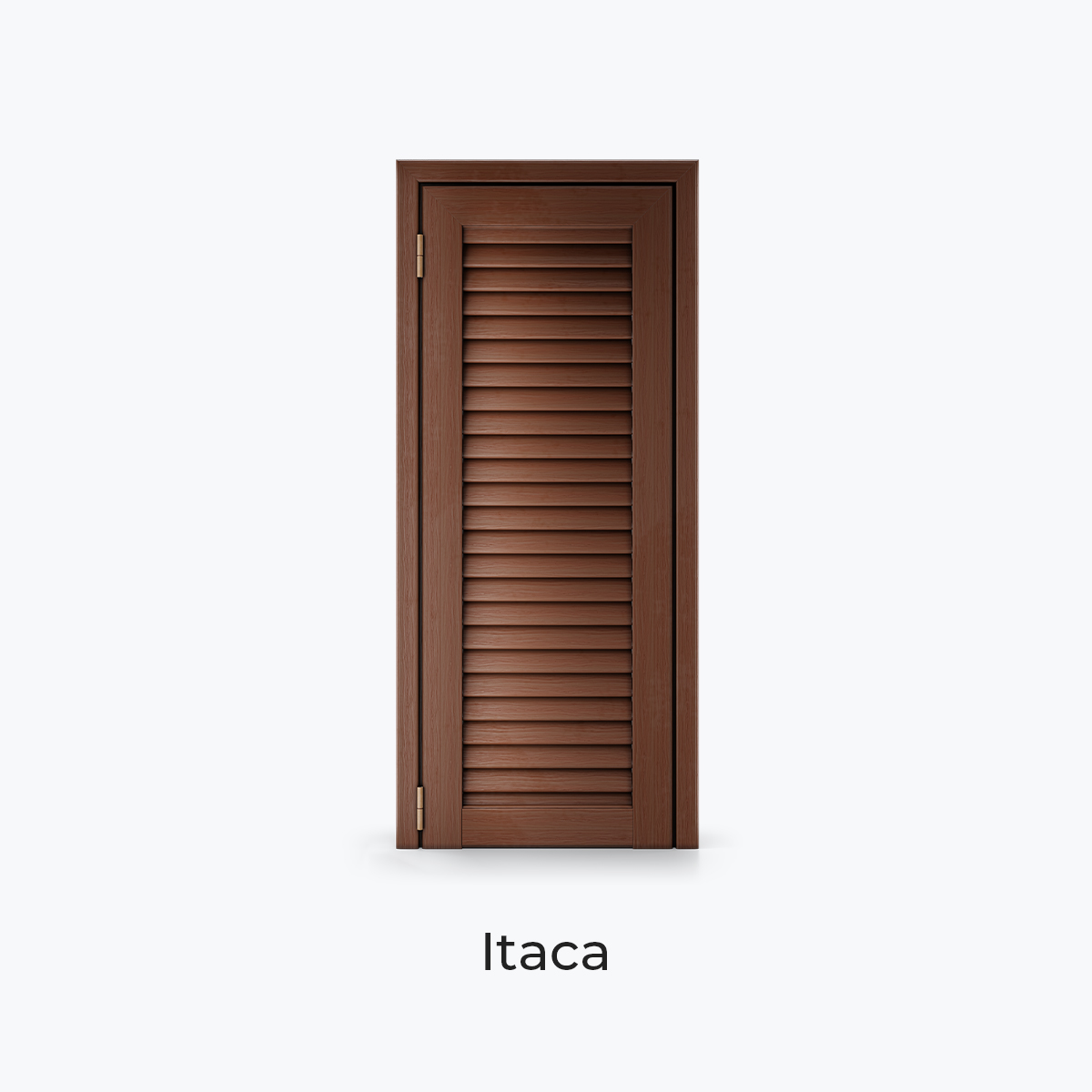

The 50 mm wide slats of the ITACA shutter are inclined towards each other, leaving room for diffused light, but effectively blocking dust settling. They are separated by aluminium powder-coated in a selected colour.
●handle closing,
●mounting with a frame with a 25 mm renovation fin,
●6 hinge colours matched to the shutter colours,

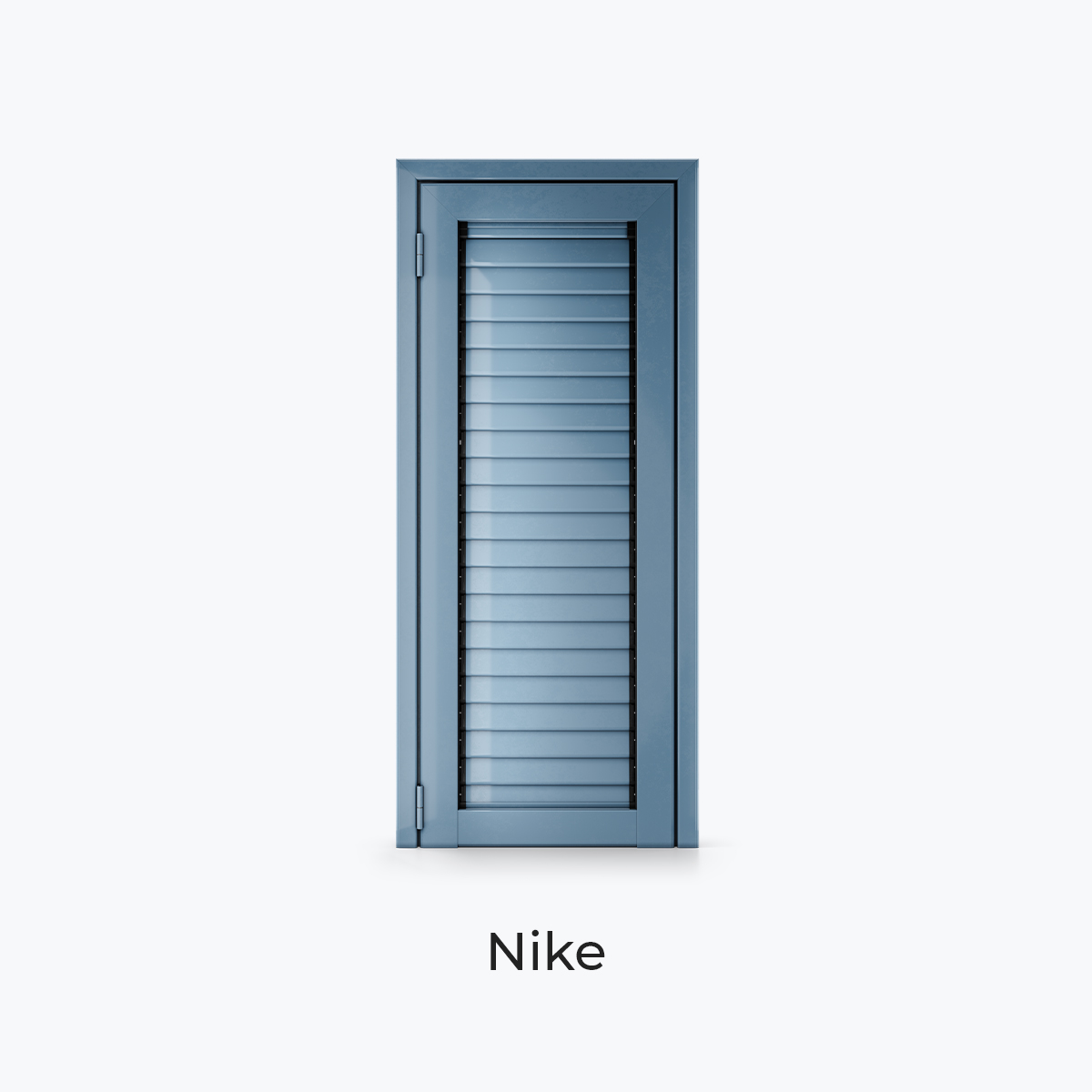

NIKE shutters were created as a sun protection system and a barrier for wind-borne dust. They are enabled by slats in the shape of water droplets, adjustable by a smooth mechanism.
●closing with an espagnolette,
●mounting with a frame with a 25 mm renovation fin,
●6 hinge colours matched to the shutter colours,

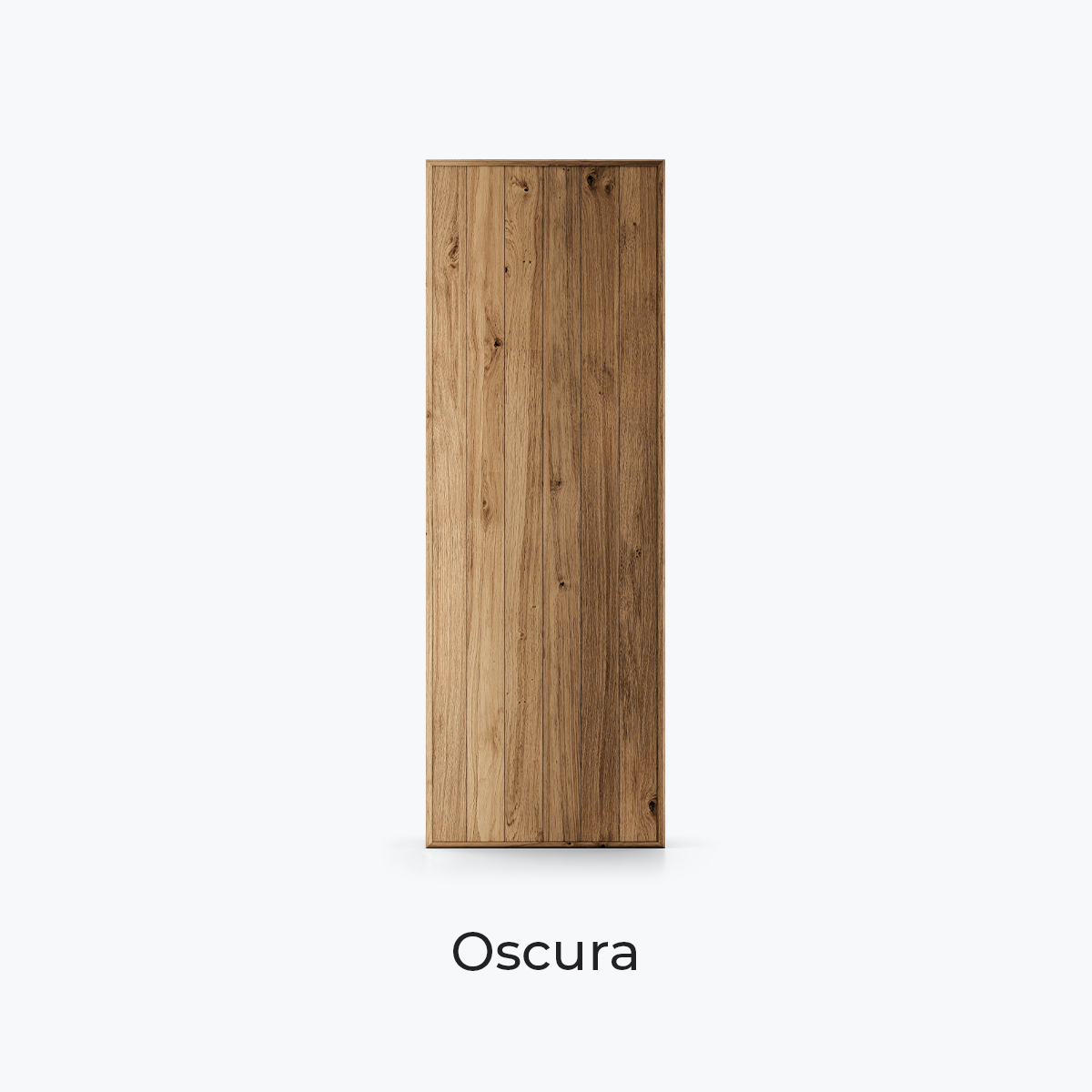

The OSCURA shutter is strongly inspired by traditional wooden shutters from the Verona and Mantua region. It has no visible frames on the outside. It is distinguished by vertical strips about 85 mm high, replacing typical slats.
●shutter frame visible only from the inside when the shutter is closed
●leaves can be mounted directly to the wall,
●possibility of mounting on frames with 45 or 62 mm renovation fins,

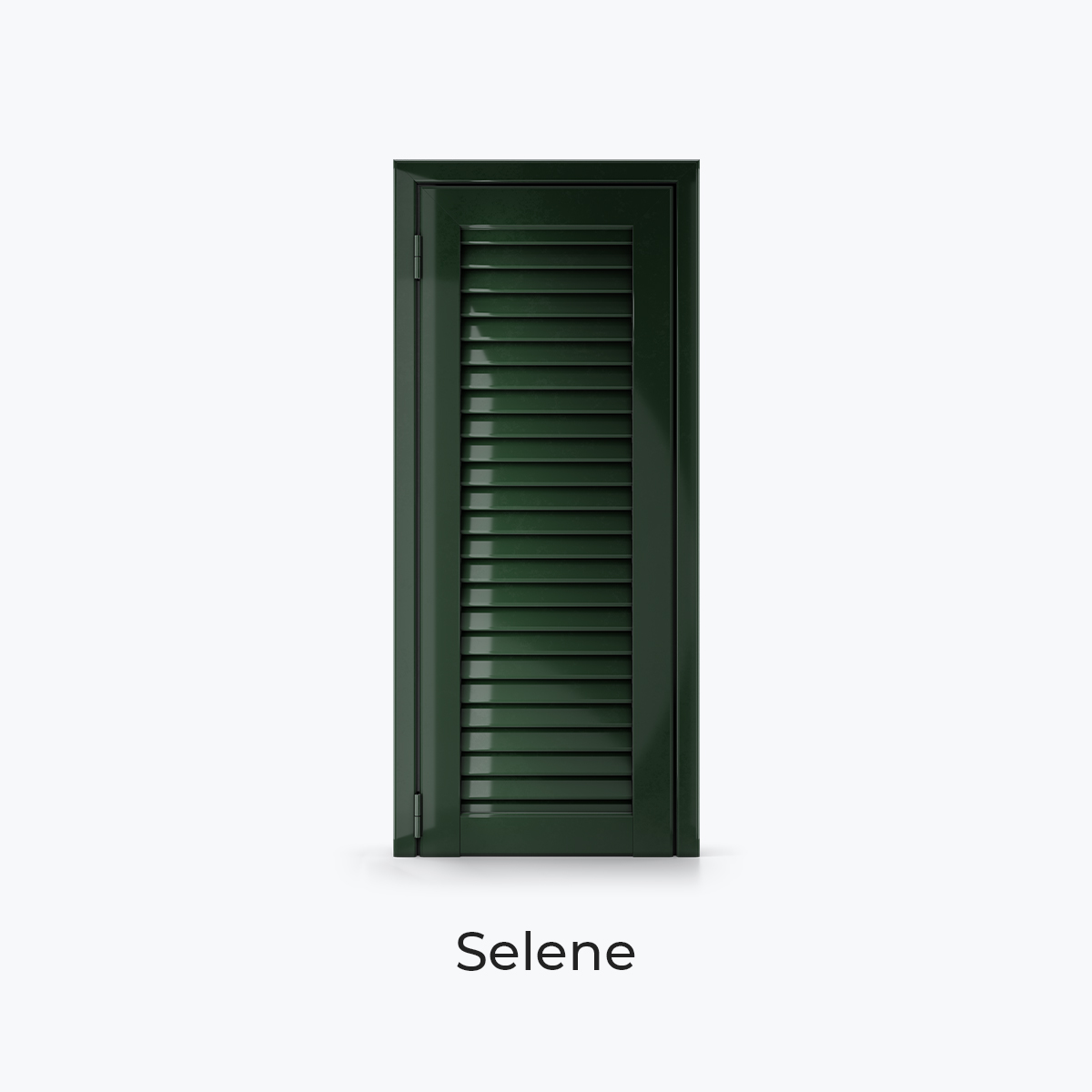

50 mm wide slats in the SELENE shutter are set at an inclined position to each other. There are powder-coated aluminium spacers between them. This design allows for subtle interior lighting with diffused light.
●closing with an espagnolette,
●mounting with a frame with a 25 mm renovation fin,
●6 hinge colours matched to the shutter colours,
